Description
Technical specifications and certifications

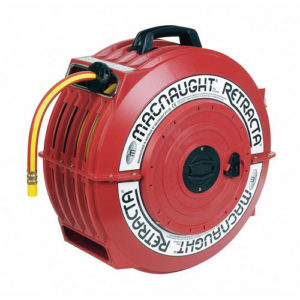

• Hose reel with hose
• Hose: Technopolymère THERMOFLEX
• Hose I.D.: 3/8 in
• Hose Length: 33 ft
• Inlet: 1/4 (F) NPT
• Outlet: 1/4 (M) NPT
• Model: Standard
• Fluid: Compressed Air
• Maximum Working Pressure: 300 PSI
• Reel Color: Grey
• With guard bend restrictor
Features and benefits
HOSE REEL
• Automatic retractable hose reel
• 1 arm steel construction
• Corrosion-resistant epoxy powder coat finish
• Wide L-shaped base
• Adjustable guide arm for wall, ceiling or floor mounting
• 4-direction non-snag rollers to reduce hose wear
• Multi-position ratchet lock and easy tension adjustment
• Fully enclosed spring
• Connecting hose not included
• Refer to product code 79.011 for the proper connecting hose
HOSE
• THERMOFLEX: High quality technopolymer hose
• Lightweight and flexible for easy handling
• Easily recoils after use / No memory
• Cover with medium / High resistance to oil (RMA-Class B)
• Excellent abrasion resistance
• Ideal for applications in contact with paints and solvents
• Bend restrictor at the outlet extremity
• RoHS compliant
• Silicone and phthalate free
• Maximum Working Pressure: 300 PSI
• Working Temperature: -26 to 65°C
Operation and installation
INSTALLATION TIP
The guide arm can be easily rotated to different positions
Applications
• Economical reels for indoor shops and professional applications
